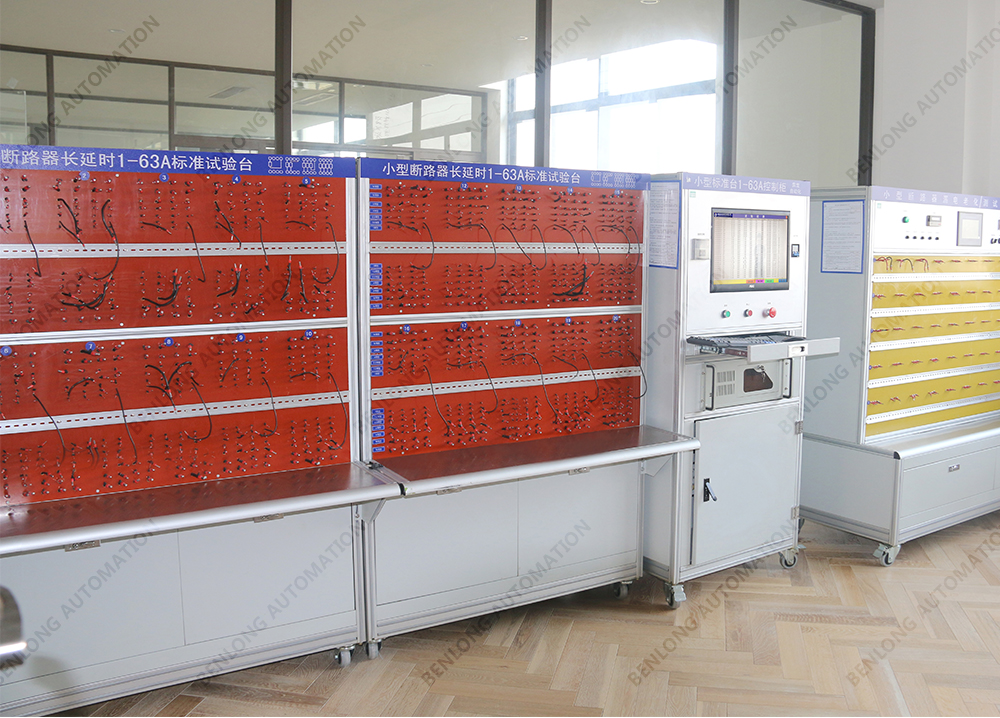

14、MCB long time thermal test bench

Short Description:

Product features:

Thermal test: Standard long time delay test can be carried out to simulate the delayed disconnection performance of MCB in real working environment.

Multiple mode selection: Support different delay test modes, including fixed delay, incremental delay and random delay, to meet different test requirements.

Precise control: Through precise delay control, the MCB disconnect time can be precisely adjusted to ensure the accuracy of the test results.

Automatic operation: The equipment has automatic operation function, which can carry out automatic delay test according to preset parameters and modes, without manual operation, and improve efficiency.

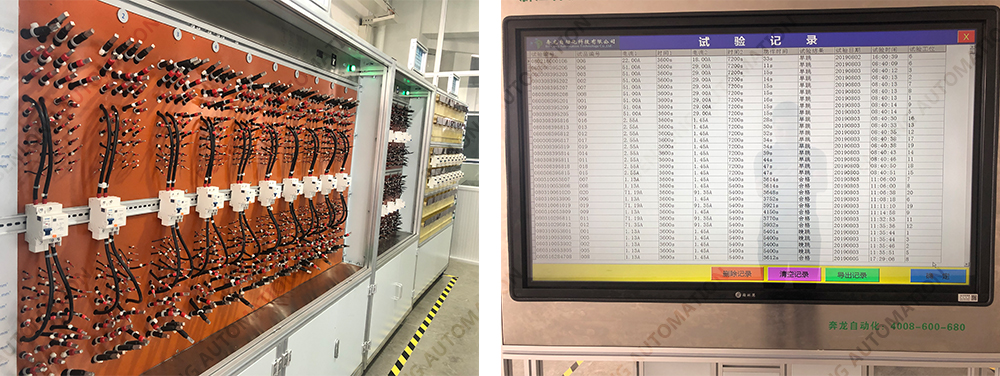

Data analysis and export: It can monitor and display the parameters and status of the test process in real time, and export the test results to the computer for data analysis and report generation.

Safety protection: The equipment has multiple safety protection measures, such as overload protection and short circuit protection, to ensure the safety of the test process.

Send email to us

Photograph

Parameters

Video

Previous: 15、MCB Aging Test Bench

Next: 13、MCB manual machinery life test bench

1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2, different shell frame products, different models of products can be manually switched or a key to switch or sweep code can be switched; switching between different specifications of products need to be manually replaced/adjusted molds or fixtures.
3, detection test mode: manual clamping, automatic detection.
4, equipment test fixture can be customized according to the product model.
5、Equipment with fault alarm, pressure monitoring and other alarm display functions.
6, Chinese and English version of the two operating systems.
All core parts are imported from Italy, Sweden, Germany, Japan, the United States, China Taiwan and other countries and regions.
8、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
9、It has independent independent intellectual property rights.
