11、Automatic assembly of junction box components equipment

Short Description:

Automatic assembly of junction box components equipment is an automated equipment used for wiring assembly operations in the production process of electronic products. It has the following functions:
Automated wiring assembly: The equipment can automatically accurately assemble and connect electronic components and wiring cables according to predetermined requirements, completing wiring assembly operations.
Quick wiring assembly: The equipment has efficient and fast wiring assembly capabilities, which can complete a large number of wiring tasks in a short time and improve production efficiency.
Automated guidance and positioning: The equipment is equipped with a guidance and positioning system that can accurately locate the positions of electronic components and wiring cables, ensuring accurate connection and assembly.
Quality inspection and troubleshooting: The equipment has a quality inspection function, which can detect the quality of the wiring assembly process, identify problems, and take corresponding measures to ensure product quality.
Automated cable stripping and connection: The device can automatically strip the insulation layer of the wiring cable and connect it to the designated wiring terminal to complete the cable connection task.
Fault detection and alarm: The equipment has fault detection function, which can monitor the working status of key components, detect abnormal situations, and timely alarm to ensure the safe operation of the equipment.
Data recording and analysis: The equipment can record key data during the wiring assembly process, such as assembly time, error rate, etc., for data analysis and production efficiency evaluation.

Send email to us

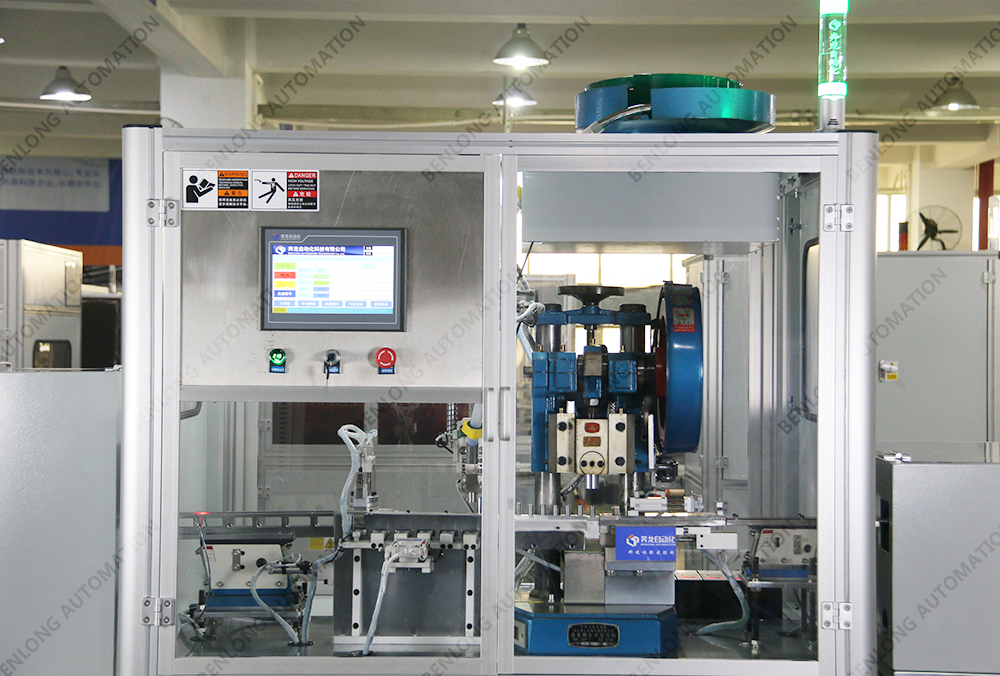

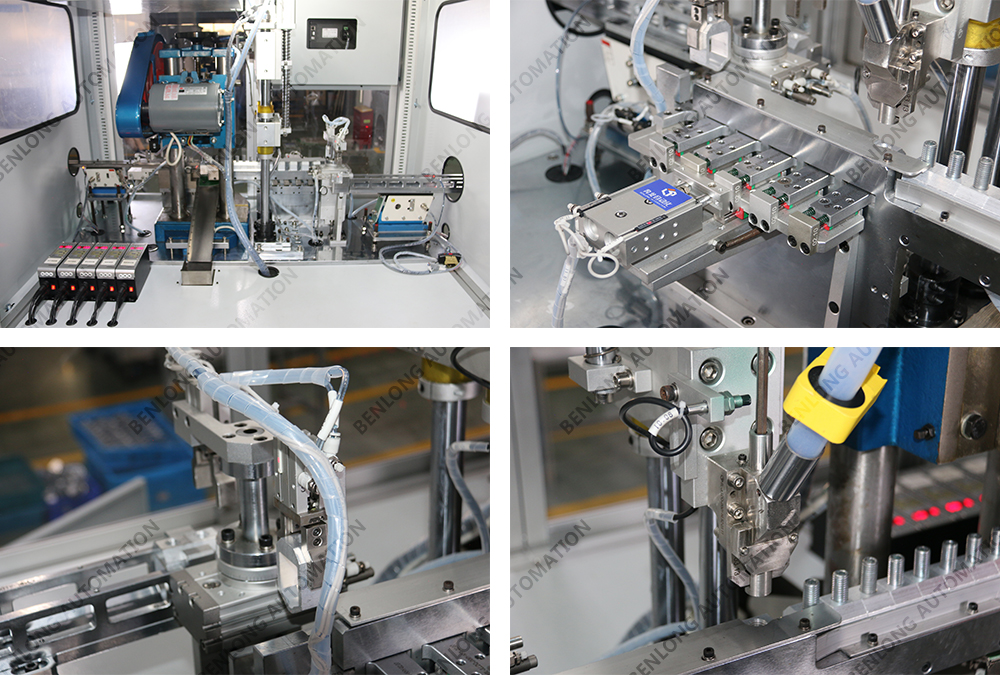

Photograph

Parameters

Video

Previous: 12、Automatic loading and unloading equipment for injection molding machine inserts

Next: 10、Automatic assembly of terminal block components equipment

1. Equipment input voltage 220V ± 10%, 50Hz; ± 1Hz;
2. Device compatible poles: 1P, 2P, 3P, 4P, 1P+module, 2P+module, 3P+module, 4P+module.
3. Equipment production rhythm: 1 second per pole, 1.2 seconds per pole, 1.5 seconds per pole, 2 seconds per pole, and 3 seconds per pole; Five different specifications of equipment.
4. The same shelf product can be switched between different poles with one click or scan code switching; Switching products requires manual replacement of molds or fixtures.
5. Assembly method: manual assembly and automatic assembly can be selected at will.
6. The equipment fixtures can be customized according to the product model.
7. The equipment has alarm display functions such as fault alarm and pressure monitoring.
8. There are two operating systems available: Chinese and English.
9. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
10. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
11. Having independent and independent intellectual property rights
