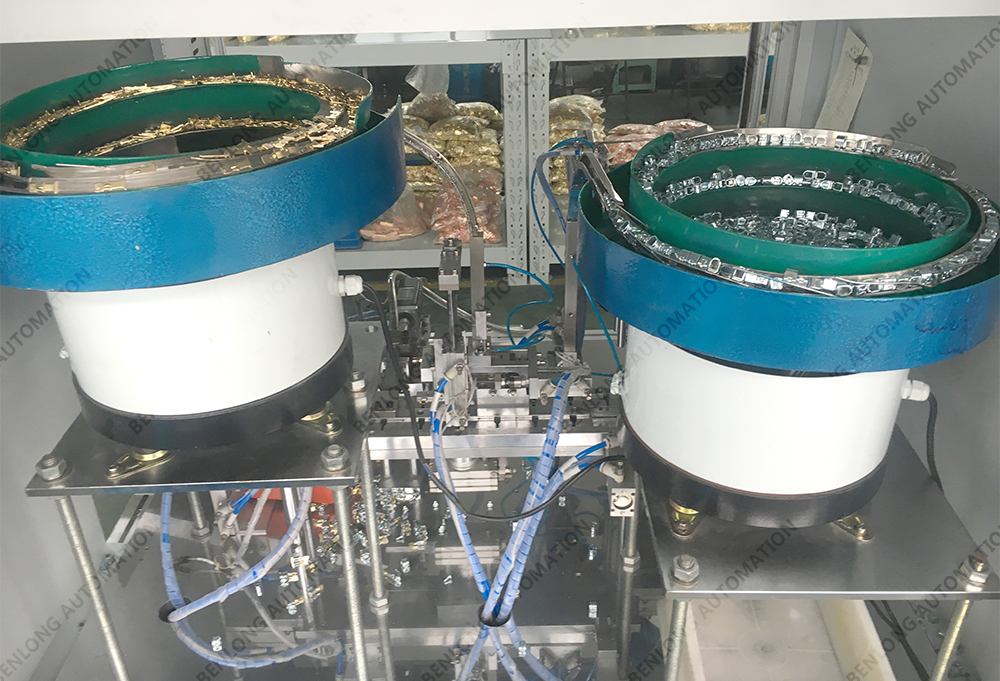

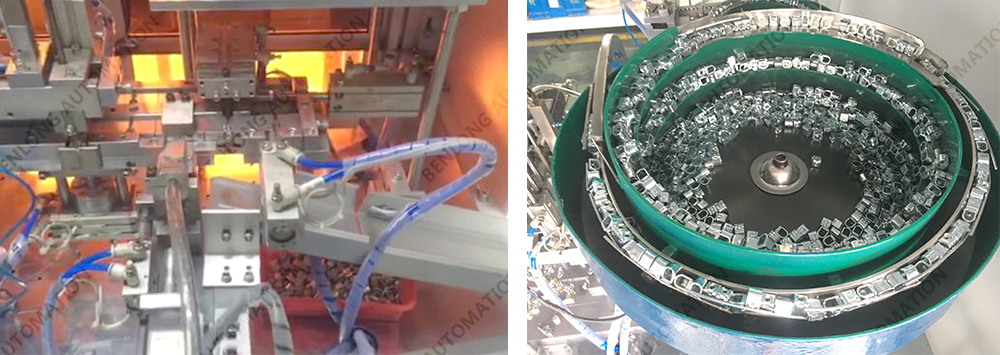

10、Automatic assembly of terminal block components equipment

Short Description:

Automatic assembly of wiring board components equipment is an automated equipment used for wiring board assembly in the production process of electronic products. It has the following functions:
Automated wiring: The device can automatically perform wiring work on the wiring board according to design requirements, assembling electronic components and cables in the correct connection method.
Accurate positioning: The equipment is equipped with an accurate positioning system that can accurately place electronic components and cables on the wiring board, ensuring the accuracy and stability of the connection.
Quick assembly: The equipment has efficient assembly capabilities and can complete a large number of wiring board assembly tasks in a short time, improving production efficiency.
Abnormal detection and elimination: The equipment can detect abnormal situations during the assembly process of the wiring board, such as inaccurate component positions, loose cable connections, etc., and take corresponding measures to eliminate them in a timely manner.
Quality inspection and recording: The equipment has a quality inspection function, which can inspect the quality of wiring board assembly, such as connectivity and welding quality, and record the inspection results for subsequent analysis and traceability.
Automated welding: The equipment can automatically perform the welding process in the assembly of the wiring board, ensuring welding quality and stability.
Data analysis and optimization: The equipment can record key parameters and process data, conduct data analysis and optimization, and improve the efficiency and quality of wiring board assembly.

Send email to us

Photograph

Parameters

Video

Previous: 11、Automatic assembly of junction box components equipment

Next: 18、MCB high and low temperature detection equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Equipment compatibility and production efficiency: can be customized according to customer requirements.
3. Assembly method: According to different production processes and requirements of the product, automatic assembly of the product can be achieved.
4. The equipment fixtures can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems available: Chinese and English.
7. All core accessories are imported from different countries and regions such as Italy, Sweden, Germany, Japan, the United States, Taiwan, etc.
8. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
9. Having independent and independent intellectual property rights.
