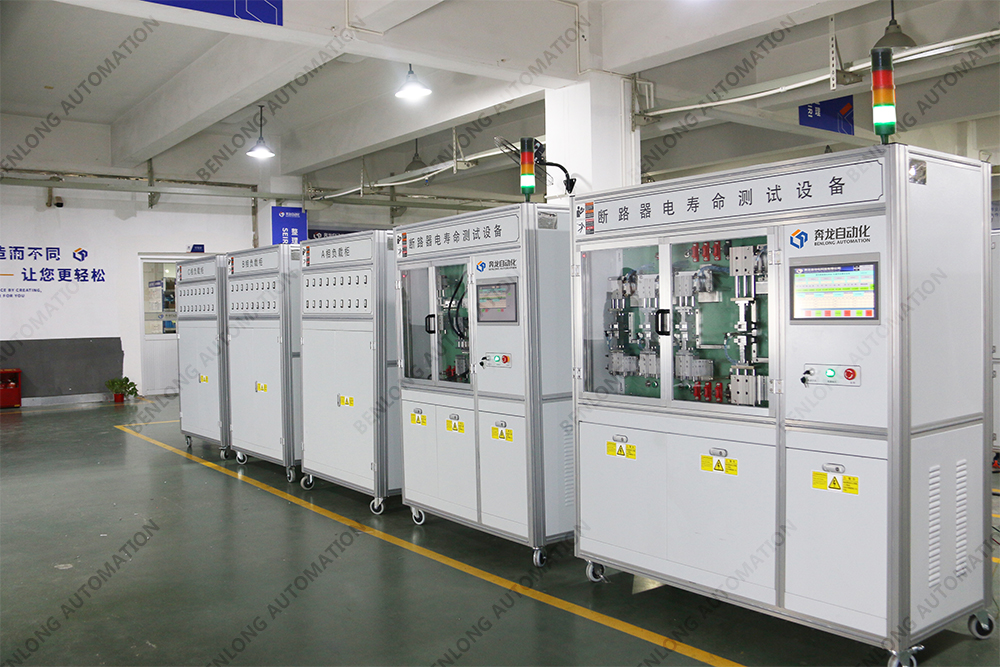

10、 MCCB electrical life testing equipment

Short Description:

Electrical Life Test: The equipment is capable of conducting long-term electrical life tests on MCCBs. By simulating the load and current changes of MCCB in actual use, the operating life of MCCB under different load conditions is detected.
Overload protection test: The device can simulate overload conditions and test the overload protection performance of MCCB. Observe whether MCCB can trip the protection circuit in a timely manner by applying loads with different current values.
Short circuit protection test: The equipment can simulate short circuit conditions and test the short circuit protection performance of MCCB. By applying a high current value short-circuit load, observe whether MCCB can quickly trip and cut off the circuit, protect the equipment and safety.
Environmental adaptability testing: The equipment can simulate the operation of MCCB under different environmental conditions, such as high temperature, low temperature, high humidity, etc. Evaluate the environmental adaptability and stability of MCCB through operational testing under these conditions.
Automated testing and data analysis: The equipment has automated testing capabilities and can quickly and accurately test multiple MCCBs. At the same time, the device can also collect, analyze, and compare test data, providing detailed test results and reports.

Send email to us

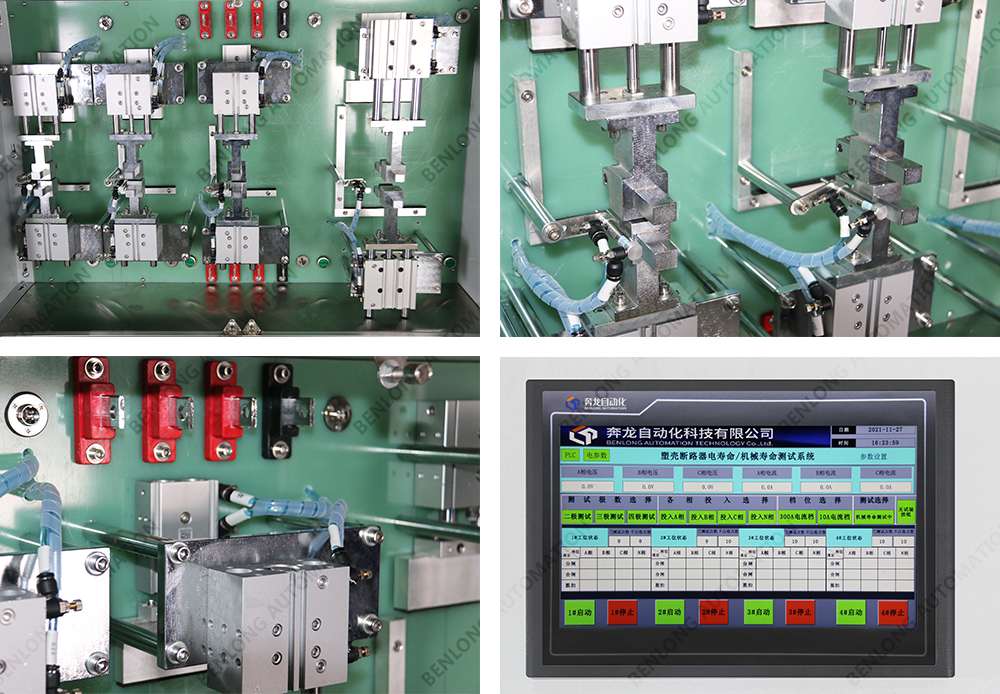

Photograph

Parameters

Video

Previous: 16、MCB Electrical Life Testing Equipment

Next: 9、MCCB delay detection equipment

1. Equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
2. Different shell shelf products and different models of products can be manually switched, one click switching, or code scanning switching; Switching between products of different specifications requires manual replacement/adjustment of molds or fixtures.
3. Testing methods: manual clamping and automatic detection.
4. The equipment test fixture can be customized according to the product model.
5. The equipment has alarm display functions such as fault alarm and pressure monitoring.
6. There are two operating systems available: Chinese and English.
7. All core accessories are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan, China and other countries and regions.
8. The device can be equipped with functions such as the “Smart Energy Analysis and Energy Conservation Management System” and the “Smart Equipment Service Big Data Cloud Platform”.
9. Having independent and independent intellectual property rights.
