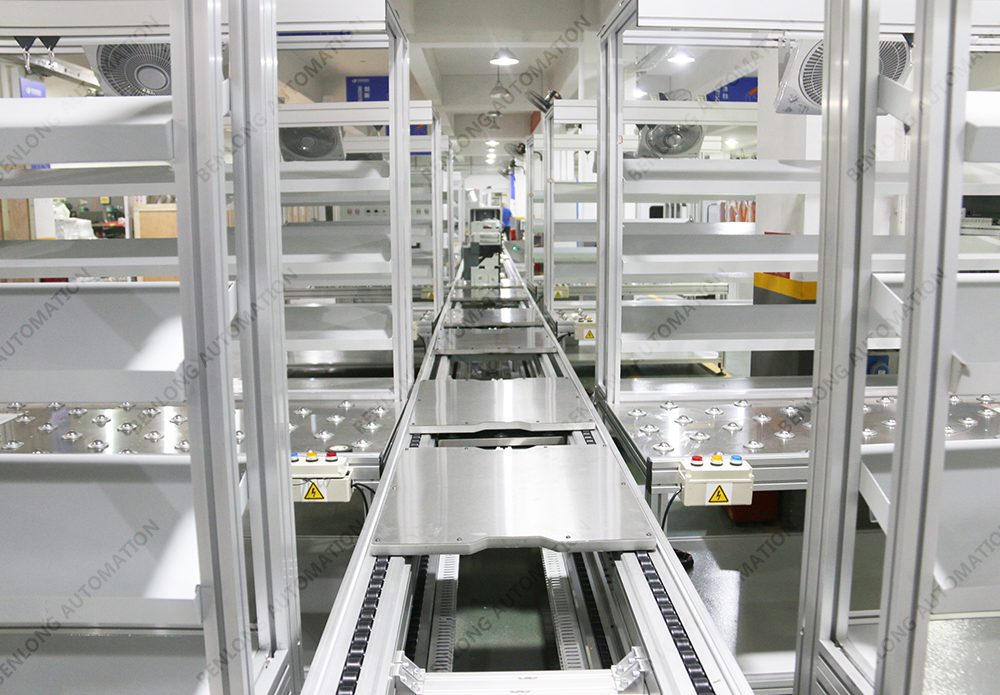

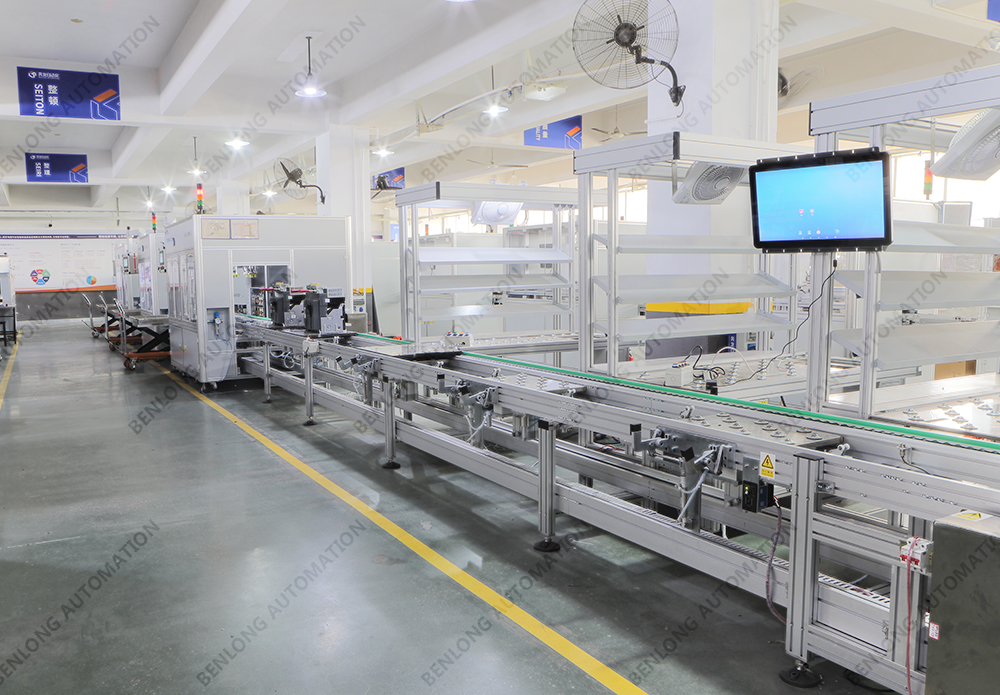

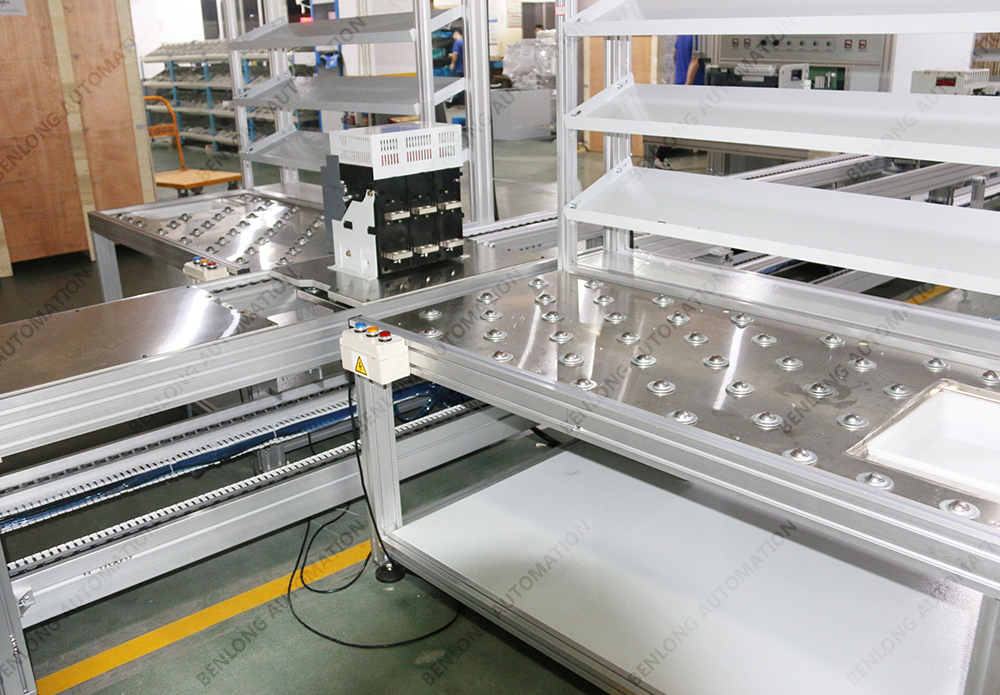

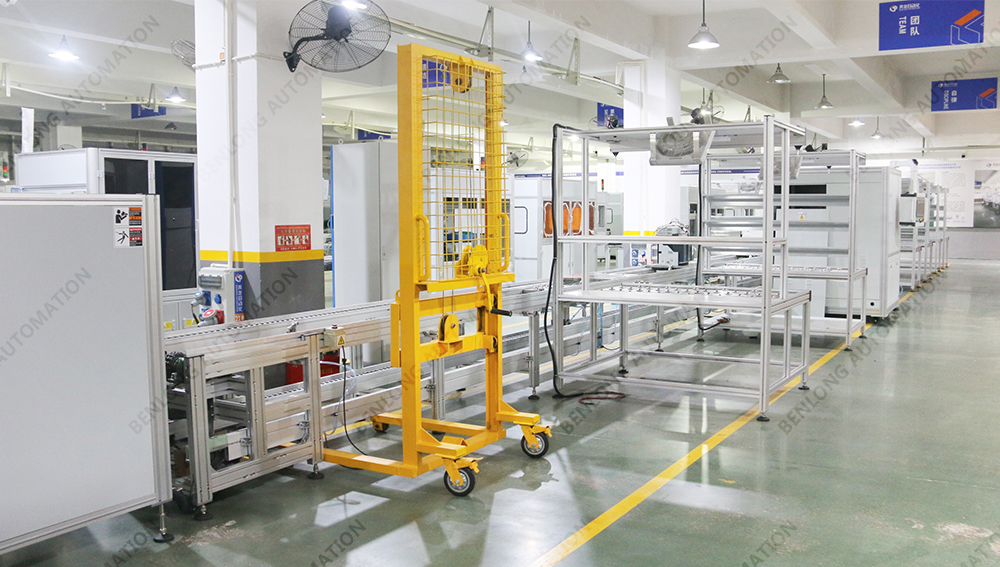

ACB automatic assembly equipment

Short Description:

System characteristics:
. Automated assembly: the equipment adopts automated assembly technology, which can automatically complete the assembly work of each component of ACB frame circuit breaker, reducing the tediousness and error of manual operation and improving the efficiency and quality of assembly.
. Precise adjustment: the equipment is equipped with precise adjusting device, which can accurately control the position and assembly quality of each component, ensuring the accuracy and stability of the circuit breaker in the assembly process.
. Multi-functional application: the equipment is suitable for the assembly of ACB frame circuit breakers of different specifications and models, with good adaptability and flexibility, able to meet the needs of different users.
. Data recording and tracking: the equipment has data recording and tracking function, which can record the key data and parameters during the assembly process, which is convenient for users to carry out quality control and post-quality assurance work.
Product Features:
. One-button fast assembly: the equipment has one-button fast assembly function, users only need to set the specification and model of circuit breaker on the equipment, and then the equipment can automatically complete the accurate assembly of circuit breaker, which greatly improves the efficiency of assembly.
. Assembly Quality Inspection: The equipment is capable of quality inspection of all key aspects of the assembly process, including component position, bolt torque, etc., to ensure that the assembly quality meets the standard requirements and provide high-quality assembly services.
. Troubleshooting and maintenance: the equipment can troubleshoot abnormalities in the assembly process and provide corresponding troubleshooting and maintenance guidance to ensure the operational stability of the circuit breaker after assembly.
. Assembly data analysis and management: the equipment can record and analyze the key data and parameters in the assembly process, which is convenient for users to carry out data management and quality analysis, and provides an effective reference basis for the optimization of the assembly process.


See More>>

Photograph

Parameters

Video

1 2 3 4 5


  • Previous:
  • Next:

  • 1, equipment input voltage 380V ± 10%, 50Hz; ± 1Hz;
    2、Equipment compatibility: drawer type, fixed series of products of 3-pole, 4-pole or customized according to customer requirements.
    3, equipment production beat: 7.5 minutes / unit, 10 minutes / unit of two optional.
    4, the same shell frame products, different poles can be switched by one key or sweep code switching; switching different shell frame products need to manually replace the mold or fixture.
    5、Assembly mode: manual assembly, automatic assembly can be optional.
    6、Equipment fixture can be customized according to the product model.
    7、Equipment with fault alarm, pressure monitoring and other alarm display function.
    8, Chinese and English version of the two operating systems.
    All core parts are imported from Italy, Sweden, Germany, Japan, the United States, Taiwan and other countries and regions.
    10、Equipment can be equipped with optional functions such as “Intelligent Energy Analysis and Energy Saving Management System” and “Intelligent Equipment Service Big Data Cloud Platform”.
    11、It has independent independent intellectual property rights.
